Mining Cables (AS_NZS Standard)
AS/NZS 1972:2006 Cables
Paper Insulated 11/11KV
Applications
These cables are used as HV feeder cables in fixed conditions.
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

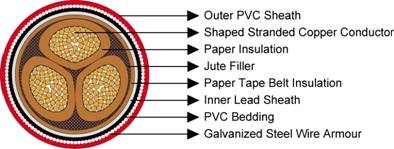

Construction
Conductors: Sector shaped stranded copper conductor.
Insulation: Paper tape.
Filling: Jute fillers.
Insulation: Paper tape belt insulation.
Inner Sheath: Lead sheath.
Bedding: PVC sheath.
Armour: Galvanized steel wire armour.
Outer Sheath: PVC sheathto AS/NZS 1026.
