Mining Cables (AS_NZS Standard)
AS/NZS 1972:2006 Cables
Type 1 1.1/1.1KV Individually Screened
Applications
These individuallycopper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

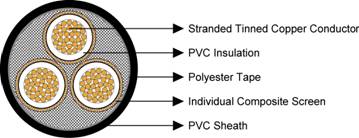

Construction
Conductors: Stranded copper conductor.
Insulation: PVC.
Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Binding: Polyester tape.
Sheath: PVC sheath.

Type 1 1.1/1.1KV Individually Screened
