Mining Cables (AS_NZS Standard)
AS/NZS 1802:2003 Reeling & Trailing Cables
Type 210 1.1/1.1KV
Applications
These cables are mainly used for hand-held boring machines and drills.
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

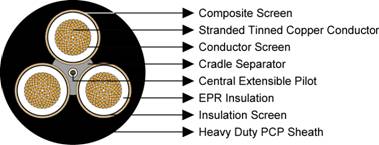

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen:Polyester barrier tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Sheath: Heavy duty PCP sheath.

Type 210 1.1/1.1KV
