Mining Cables (AS_NZS Standard)
AS/NZS 1802:2003 Reeling & Trailing Cables
Type 240 1.1 to 11KV

These cables are mainly used as feeder cables for power supply to machinery or longwall supply.Cable contains 3 large pilots and large core screens provide for low resistance earthing.
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

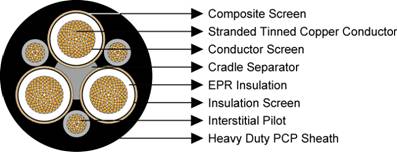

3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.
3×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.
Cradle Separator: Semiconductive PCP.
Sheath: Heavy duty PCP sheath.

Type 240 1.1 to 11KV
