Mining Cables (AS_NZS Standard)
AS/NZS 1802:2003 Reeling & Trailing Cables
Type 260 1.1 to 11KV
Applications

These armoured cables are mainly used as feeder cables for power supply where mechanical protection and strength is required, and also can be the feeder to machinery and i.e. transportable mining substation (sand mining).
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

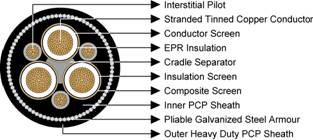

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.
Cradle Separator: Semiconductive PCP.
3×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.
Inner Sheath: PCP sheath.
Pliable Armour: Galvanized low carbon (mild) steel strands.
Outer Sheath: Heavy duty PCP sheath.

Type 260 1.1 to 11KV
