Mining Cables (AS_NZS Standard)
AS/NZS 1972:2006 Cables
Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened
Applications
These individually copper screened cables are used for wiring of machines or between machines and equipment wherea rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and controlcores or twisted pair and screened cores.
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

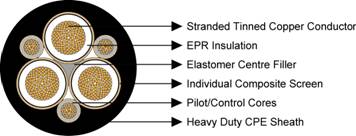

Construction
Conductors: Stranded tinned annealed copper conductor.
Insulation: EPR.
Filling: Elastomer centre filler.
Pilot/Control Cores:EPR covered and composite screened flexible stranded tinned copper conductor.
IndividualComposite Screen (earth conductor): Tinned annealed copper braiding interwove with
olyester yarn.
Sheath: Heavy duty CPE sheath.

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened
