Mining Cables (AS_NZS Standard)
AS/NZS 2802:2000 Reeling & Trailing Cables
Type 441 (class 2) 1.1/1.1KV
Applications
These Class 2 cables are designed for many uses, suitable for trailing and also suitable for reeling applications, have one central pilot and a semiconductive cradle supportingand protecting the power cores, which makes these cables less likely to be damaged from crushing and squashing
Standards
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

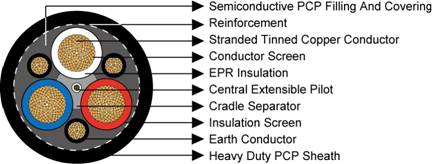

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: polyester barrier tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: SemiconductivePCP filling andcovering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
TextileReinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.

Type 441 (class 2) 1.1/1.1KV
