Mining Cables (AS_NZS Standard)
AS/NZS 2802:2000 Reeling & Trailing Cables
Type 450 3.3 to 33KV
Applications
These cablesare suitable for supply of power to a wide range of applications, from dragline cable to slow reelingapplications, where copper screened cable is required but light weight and smaller dimensions are also desired.
Standards
AS/NZS 2802:2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

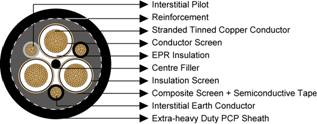

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen:Polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Composite Screen:Tinned annealed copper braiding interwove with polyester yarn, covered with semiconductive tape.
Filler: Elastomer centre filler.
2×Interstitial Earth Conductor: CSP insulated flexible stranded tinned copper conductor.
1×Interstitial Pilot:EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Extra-heavy duty PCP sheath.

Type 450 3.3 to 33KV
