Mining Cables (AS_NZS Standard)
AS/NZS 1972:2006 Cables
XLPE Insulated 6.35/11KV & 12.7/22KV
Applications

Thesecables are used as HV feeder cables in fixed conditions.
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

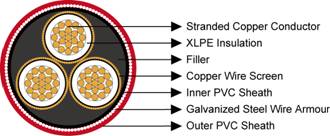

Construction
Conductors: Stranded plain copper conductor.
Insulation: XLPE.
Individual Screen (earth conductor): Copper wire.
Inner Sheath: PVC sheath.
Armour: Galvanized steel wire armour.
Outer Sheath: PVC sheathto AS/NZS 1429.1.

XLPE Insulated 6.35/11KV & 12.7/22KV
