Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 15kV
Applications :
These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills.
Standards :
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

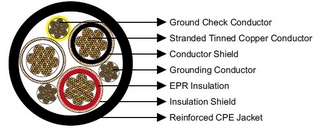

Construction :
Conductor Stranded annealed tinned copper conductor.
Conductor Shield Conducting layer.
Insulation Ethylene Propylene Rubber (EPR).
Insulation Shield Conducting tape + Tinned copper/textile braid.
Ground Check Conductor Tinned copper with a yellow polypropylene insulation.
Grounding Conductor Tinned copper conductor.
Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.
Options :
Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 8×OD.
Maximum Conductor Operating Temperature: +90℃.
