Type SHD-GC Three-Conductor Round Portable Power Cable, CPE Jacket 2kV
These heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders,drills, conveyors, pumps and mobile equipment where grounding conductors, a ground check conductor and metallic shielding are required.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

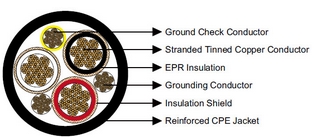

Conductor Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Insulation Shield Tinned copper/textile braid.
Ground Check Conductor Tinned copper conductor with a yellow polypropylene insulation.
Grounding Conductor Tinned copper conductor.
Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.
Other jacket materials such as CSP/PCP/NBR/PVC/TPU are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 6×OD.
Maximum Conductor Operating Temperature: +90℃.
