Portable Welding Cables :
Portable Arc-Welding Cable 600V
Applications :
These cables are designed for use as flexible welding leads connecting the electrode holder to the welding machine in the secondary circuit of electric arc welding systems.
Standards :
ICEA S-75-381/NEMA WC 58
ASTM B 172
CAN/CSA C22.2 No. 96
UL 1581

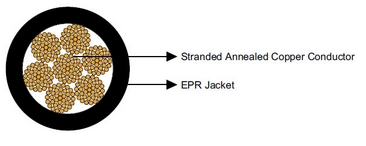

Construction :
Conductor Class K/M stranded annealed copper conductor.
Jacket Heavy-duty/medium-duty Ethylene Propylene Rubber (EPR).
Options :
Other jacket materials such as NR/CSP/PCP/NBR/PVC are available upon request.
Heavy-duty, two-layer jacket with reinforcement between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 6×OD.
Maximum Conductor Operating Temperature: +90℃.
