Type SHD-GC Three-Conductor Round Portable Power Cable, TPU Jacket 25kV
These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges,drills and for power feeders.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

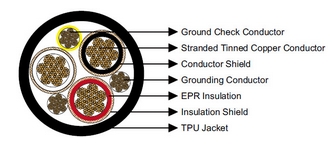

Conductor Stranded annealed tinned copper conductor.
Conductor Shield Conducting layer.
Insulation Ethylene Propylene Rubber (EPR).
Insulation Shield Conducting tape + Tinned copper/textile braid.
Ground Check Conductor Tinned copper conductor with a yellow polypropylene insulation.
Grounding Conductor Tinned copper conductor.
Jacket Thermoplastic Polyurethane (TPU) Jacket, black.
Other jacket materials such as CPE/CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 8×OD.
Maximum Conductor Operating Temperature: +90℃.
