Type G Three-Conductor Round Portable Power Cable 2kV
These cables are designed for use with mobile mining equipment, such as continuous miners, cutting or loading machines, conveyors, drills or pumps.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

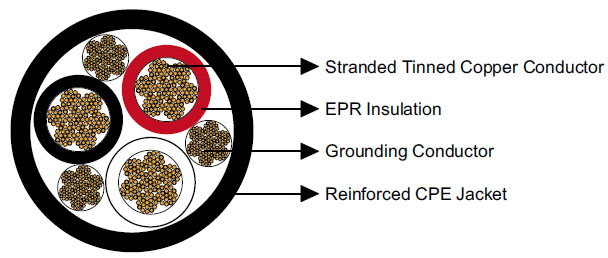

Conductor Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Grounding Conductor Tinned copper conductor with an optional green outer covering.
Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 6×OD.
Maximum Conductor Operating Temperature: +90℃.
