Type G Two-Conductor Flat Portable Power Cable 2kV
These flat parallel cables are designed for use on D.C. off-track mining equipment, such as D.C. shuttle cars,drills, cutting and loading machines.
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

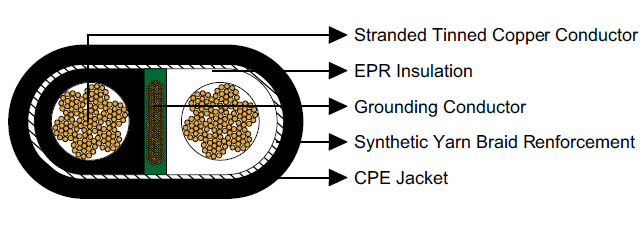

Conductor Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Grounding Conductor Tinned copper conductor with an optional green outer covering.
Reinforcement Synthetic yarn.
Jacket Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 6×OD.
Maximum Conductor Operating Temperature: +90℃.
