Type SHD-PCG Three-Conductor Round Portable Power Cable 2kV
Applications :
These heavy duty cables are designed for use on longwall shearers, where three shielded power conductors,three unshielded control conductors, and a grounding conductor are required.
Standards :
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

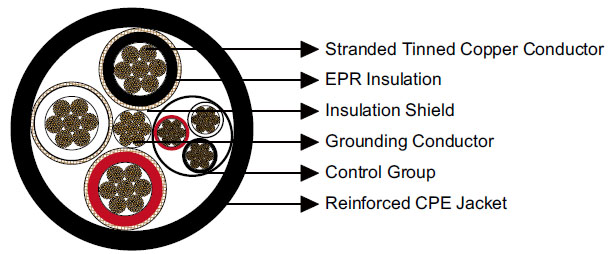

Construction :
Conductor Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Insulation Shield Tinned copper/textile braid.
Grounding Conductor Tinned copper conductor with an optional green outer covering.
Control Group (3 Conductor) Tinned copper conductor, EPR insulation and thermosetting jacket. Colour of insulation: Black, white and red.
Grounding Conductor Tinned copper conductor, located in the center of the cable.
Jacket Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.
Options :
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 6×OD.
Maximum Conductor Operating Temperature: +90℃.
