Type W Two-Conductor Round Portable Power Cable 2kV
Applications :
These cables are designed for general use where bare grounding conductors are not required or desired.
Standards :
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

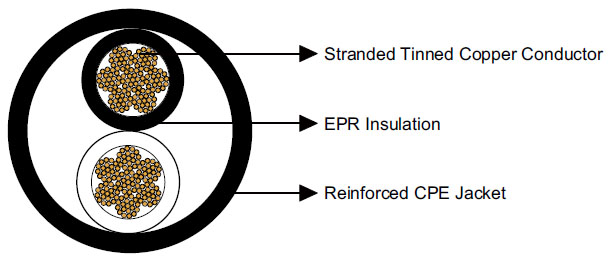

Construction :
Conductor Stranded annealed tinned copper conductor.
Insulation Ethylene Propylene Rubber (EPR).
Jacket Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)
Options :
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties :
Minimum Bending Radius: 6×OD.
Maximum Conductor Operating Temperature: +90℃.
