Mining cables(VDE Standard)
Cables for Open-cast Mining
(N)TSCGEWOEU Medium-Voltage Fixed Installation Cable Without Fibre Optics
Applications
These cables are used for laying alongside the conveyor belts (also for shiftable units)and on material handling equipment (even with continuous movementsuch as in cable booms or as connection between upperand lower car) and for connection of submersible pump units.
Standards
Based on VDE 0250 Part 813

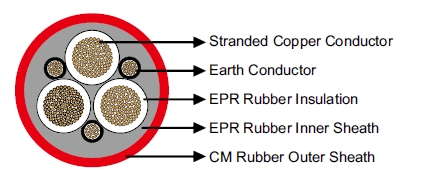

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Semiconductive layer.
Insulation: EPR.
Outer Conductor Layer:Semiconductive layer.
Earth Conductor: Split intothree in the outer interstices.
InnerSheath: EPR.
Outer Sheath: CM.
