Mining cables(VDE Standard)
Cables for Underground Mining
NSHTOEU 0.6/1kV LHD Cables
Applications
These cables are used for frequently changing dynamic loads, such as reeling cables for scoops (LHDs) in underground mines, suitable for mono-spiral reels and cylindrical reels.
Standards
VDE 0250 Part 814

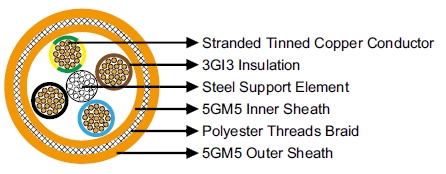

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: EPR type 3GI3.
Support Element: Central steel support element.
Inner Sheath: PCP type 5GM5.
Anti-torsion Braid:Reinforced braid of polyester threads in a vulcanized bond between inner and outer sheath.
Outer Sheath: PCP type 5GM5.

NSHTOEU 0.6/1kV LHD Cables

Download details in PDF

Download details in Word
