NTMTWOEU 0.6/1kV Mine Hoist Cables
Applications
These cables are used as suspended cable for intrinsically safe control of user-operated mine hoists (lifts) with telephonic connection in underground mines.
Standards
VDE 0250 Part 813

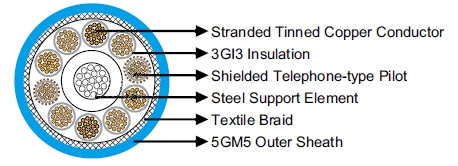

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation: EPR type 3GI3.
Support Element: Central steel support element.
Anti-torsion Braid:Textile braid.
Outer Sheath: PCP rubber type 5GM5.

NTMTWOEU 0.6/1kV Mine Hoist Cables
