NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable
Applications
These cables are used for permanent operation inwater where the cable is required to have additionalmechanical protection.
Standards
VDE 0250 Part 813

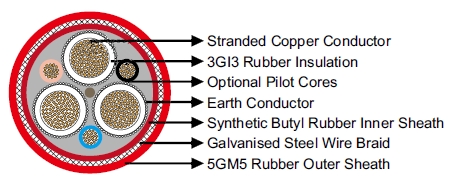

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Special rubber compound, conductive.
Insulation: Rubbertype 3GI3.
Outer Conductor Layer:Special rubber, conductive, easy strippable.
Pilot Cores (optional):Copper conductor with EPR insulation.
Earth Conductor: Spiral of tinned annealed copper wires.
InnerSheath: Waterproof synthetic butyl rubber.
Armouring: Braid of galvanised steel strands.
Outer Sheath: Rubber type 5GM5.

NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable
